Mạch sạc và bảo vệ pin 2s 20A HW-392 pin 3.7V
Mạch sạc và bảo vệ pin 2s 20A HW-392 pin 3.7V
- Hàng trong kho: 48
- Nhà sản xuất: Nhập khẩu
- Khối lượng: 0.10kg
- Mã kho: 787
- Vị trí: 1C31
Số lượng đã bán: 151
Lượt xem: 3971
25.000đ

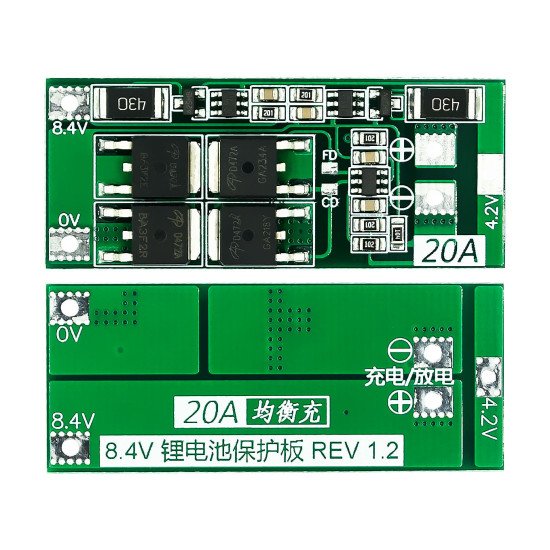

mach bao ve pin 2s 20a hw-392 pin 3.7V
Product Name: 2 string 8.4V 20A lithium battery protection board (standard version)
Product model: HW-392
Charging voltage: DC 8.4~9V
Continuous discharge current: up to 20A (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current: up to 10A

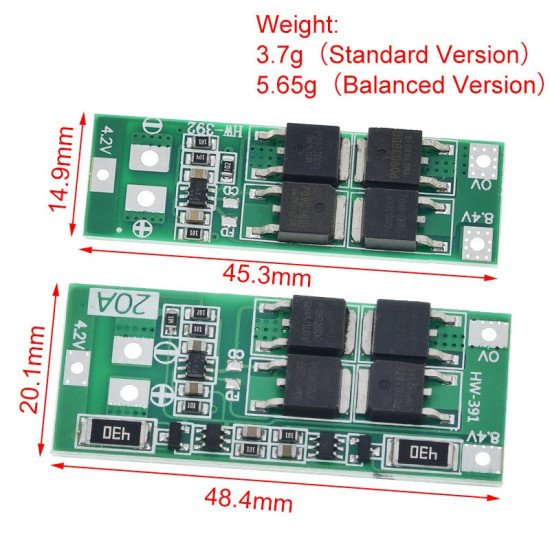

Product size: 45*15*3.5mm
Applicable choice: Suitable for lithium battery with nominal voltage of 3.7V and full charge of 4.2V
(including 18650, 26650, polymer lithium battery), with starting current 25A, power less than 50W electric drill, or 168W resistive load
Note 1: Successfully starting the drill requires 2 10C-20C power batteries, or 4 5C-10C
Power battery (recommended power battery model: SONY VTC4, VTcC4A, VITC5A, VTC6)
For 0V and 84V cables, use copper wire of 2 square millimeters or more (nickel sheets cannot be used!!!).

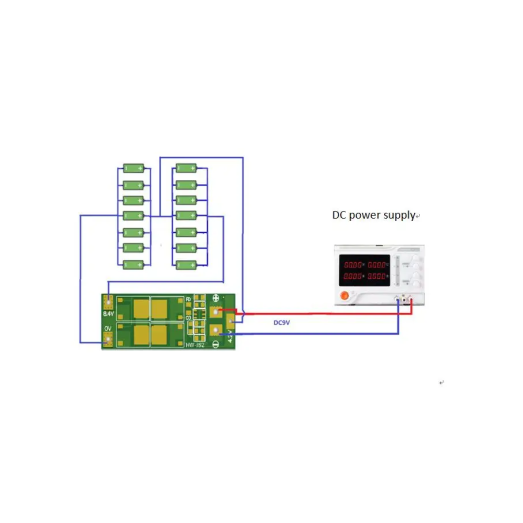

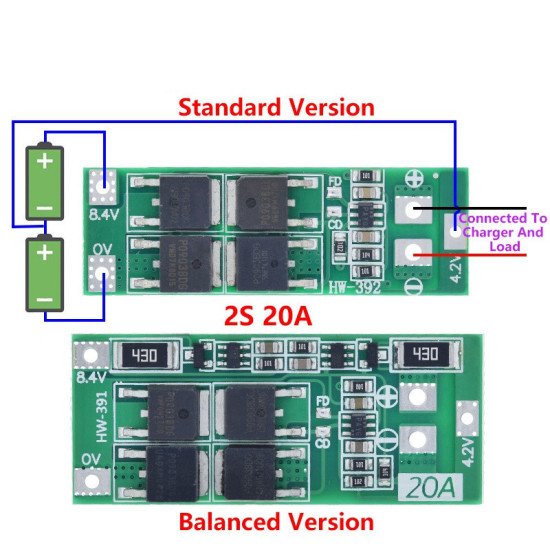

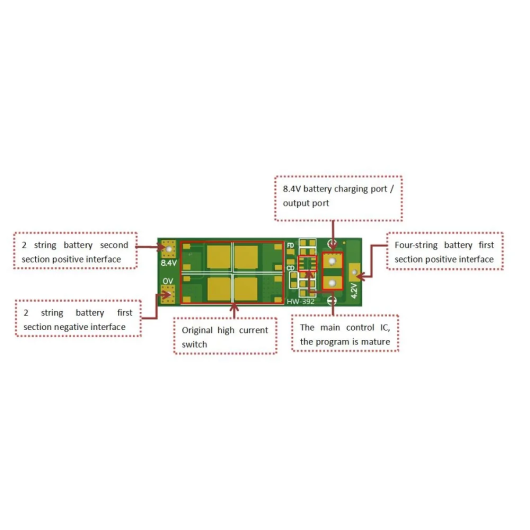

Note 2: When welding the battery for the first time, it needs to be charged before outputting; strictly according to the diagram wiring 0V, 4.2V, 8.4V, do not touch any components on the board when soldering the wire, do not intentionally short circuit.
| Item | Min | Typ | Max | Units | Notes |
| Consuming current | 12 | 18 | 24 | uA | |
| Overcharge protection voltage | 4.2 | 4.25 | 4.3 | V | |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V | |
| Over-discharge protection voltage | 2.4 | 2.5 | 2.6 | V | |
| Overvoltage protection after over-discharge protection | 2.8 | 3 | 3.2 | v | 1C discharge |
| Overvoltage protection after over-discharge protection | 3.2 | 3.5 | 3.8 | V | 2C discharge |
| Over-discharge recovery voltage | 2.5 | 2.6 | 2.7 | V | |
| Conduction internal resistance | 5 | 6 | 7 | mΩ | |
| Overcurrent protection current | 19 | 22 | 25 | A | |
| Overcurrent delay time | 50 | 100 | 150 | ms | |
| Continuous operating current | 0 | 20 | 20 | A | Continuous operating current |
| Continuous output power | 0 | 168 | 168 | W | Resistive load |
| Ambient temperature | -40 | 25 | 85 | ℃ |
